Rhinomanometer with Tympanometer COMBI 4000 Blue Line

COMBI 4000ia Rhinomanometer and a Tympanometer in one device. This saves space and money. COMBI has the parameters of Rhinomanometer Rhino 4000 and Tympanometer TYMP 4000. The device is offered in a standard or Blue Line version (modern, antibacterial housing).



Available models:

• COMBI 4000 – equipped with a thermal printer and LCD display

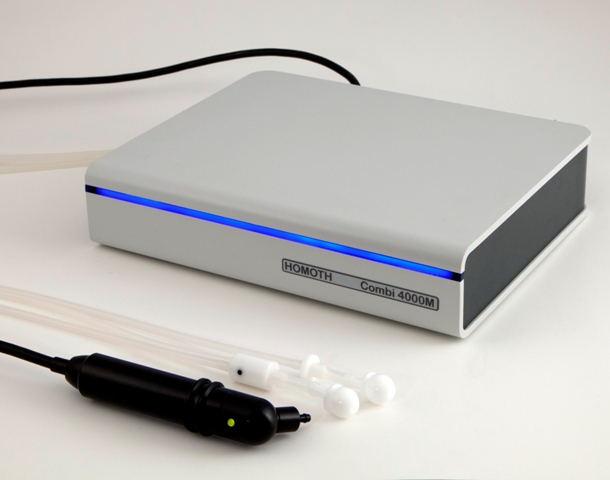

• COMBI 4000M – controlled from a PC via USB2.0



Rynomanometr is used to examine the flow of air in the upper part of the nasal passages. Allows you to carry out measurement in two ways: through nasal olives or an optional mask on the nose and mouth.

Tympanometr allows you to perform a full, automatic impedance test within a few seconds. The device can be used in clinical applications and private practice. The use is simple and intuitive.



Download tympanometers and rhinomanometers catalog.



Tympanometer:

• Standards: EN 60601-1/1-1/1-2 and MPG
• Tons of measurement: 226Hz, 85 dB SPL
• Pressure range: +200 to -400 daPa
• Pressure change: 300 daPa / second
• Measuring time: 2 sec. (susceptibility)
• Tony reflexes: 500, 1000, 2000 and 4000 Hz at 85, 95 and 105 dB HL
• The sequence of tone: automatic
• Diagnosis of reflexes: automatic
• Reflex threshold: adjustable by software
• The study of reflexes: ipsilateral and versus lateral (optional)
• Reflex decay test: set manually
• Pressure calibration: automatic at startup
• The status indicator 3-color LED in the probe
• Changing sides: automatic or manual
• Air pump: very quiet piston pump

Rhinomanometer:

• Applications: assessing the impact of allergic tests, the diagnosis of nasal fractures, control the functionality of the nose after surgery and after administration of
  Method: flow of the anterior nasal passages
• Standards: EN 60601-1/1-1/1-2/MPG
• Air flow: 0-900 ml/s inspiratory and expiratory
• Differences pressure: 0 – 50 daPa
• Control: 2 measuring lines on the display
• Averaging 5 flow curves
• Pressure calibration: automatic at startup
• Presentation of results: on the graph and numerically
• Presented values:
  • pressure in daPa
  • flow rate in ml/s
  • total flow
  • proportional
  • coefficient of resistance
• point. 2-5 are represented at 75, 150 and 300 daPa

Accessories:

• probe with cable
• a set of ear plugs
• probe holder
• handset DT 48 A
• 12x nasal olives
• 2x flow probe
• 2 sets of wires with silicone
• footswitch
• probe holder
• mask on the nose and mouth (optional)



Download COMBI 4000 Blue Line and COMBI 4000M Blue Line catalogs.
