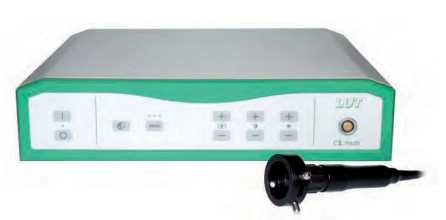

Endoscopic video camera C1 Multi

Endoscopic video camera Multi C1 is available with straight and bent head. The camera is equipped with a control module that has a power indicator, white balance buttons and on-screen menu. The camera has three preset configurations, the ability to adjust contrast and brightness. The camera operates in PAL or NTSC and has one 1 1/2″ CCD sensor (digital 10-bit technology). Safety class BF. The camera has CE mark according to the EN 60601-1.

Download endoscopic video cameras catalog.

Specification:

• Input / Output: 1x S-Video (Y / C), 1 x Video (CVBS)
• Image sensor: 1/2 “CCD
• Camera cable: 3 m
• Adapter f = 30mm with anti-moire filter
• Resolution: 470×420 (PAL), 470×350 (NTSC) lines
• Power supply: 240 V, 50 Hz, 25 VA
• Control unit: 360 mm x 88 mm x 320 mm
• Camera head: 160×60 mm
• Weight: approx 4 kg

Available models:

• KM.2007s.C1- strait head
• KM.2008s.C1- bent head

Download C1 Multi edoscopic video camera catalog.
